    HPC SERIES

    H SERIES
    HPC SERIES
    HPC BOOSTER SERIES
    HPC BOOSTER GP SERIES
    WAVE SERIES
    HPC-H SERIES


     1,1-7,5 kW   8-18-15 bar  205-1657 l/min


    Oil Injected, Single & Double Stage, Belt Driven

    Reciprocating Air Compressors

    Robust, reliable and long-lasting compressors offer ideal air solutions for small industrial businesses and workshops.

     Advantages

    • Reliable operation

    • High-quality components for long service life.


      General Features

    • Suitable for operation even in the most challenging ambient conditions

    • Easy to use and low noise levels

    • Reliable and efficient compressed air production

    hpc-series


     Main Motor and Safety System

    • IE3 efficiency-class electric motor

    • Safe operation with pressure switch, check valve and safety valve

    • Belt-pulley guard

    • Manometer

    • Ready-to-run electrical mechanism

     Compressor Block

    • Cast cylinder body

    • Cast iron cylinder heads with cooling channels

    • Special aluminium alloy pistons and connecting rod

    • Cast pulley for fan-type efficient cooling

    • Air intake filter

    • Splash lubrication

    • Oil level gauge

    • Factory-filled oil

    • Star/delta connectors (5.5 kW and above)

    • External control panel (optional)

    hpc-series

     1,1-7,5 kW   8-18-15 bar  205-1657 l/min

    TECHNICAL  SPECIFICATIONS


    Model Pressure Capacity (intake) Motor Power Connection Size Dimensions (mm) Weight Air Receiver
    bar psi L/min cfm kW/HP Length Width Height kg L
    Single Stage

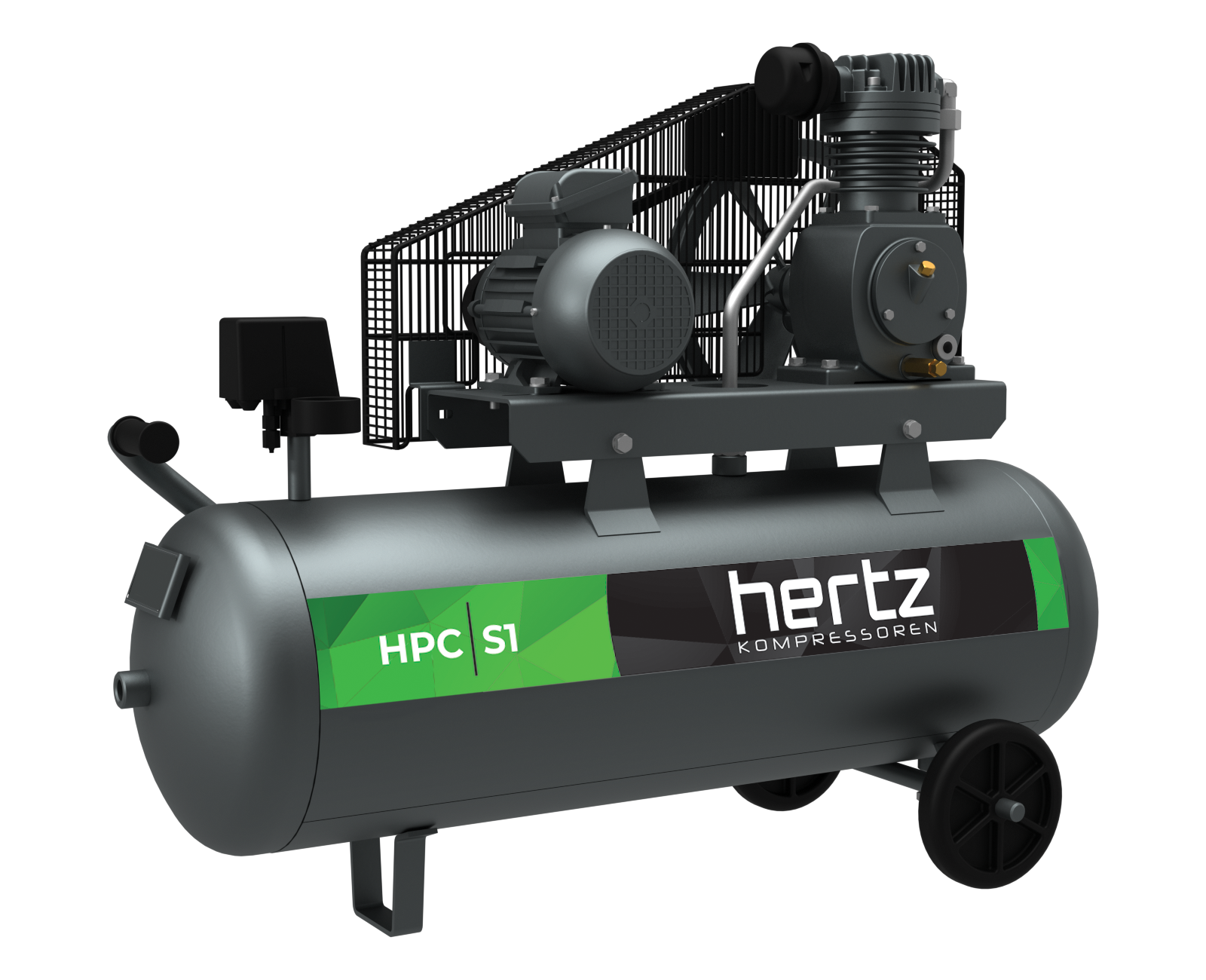

    HPC-S1 8 115 205 7,2 1,1/1,5 1/2” 1202 426 894 93 80
    HPC-S2 8 115 327 11,5 1,5/2,0 1/2” 1202 426 914 106 80
    HPC-S3 8 115 410 14,5 2,2/3,0 1/2” 1531 450 1037 135 200
    HPC-S5 8 115 607 21,4 4,0/5,5 1/2” 1830 466 1145 209 250

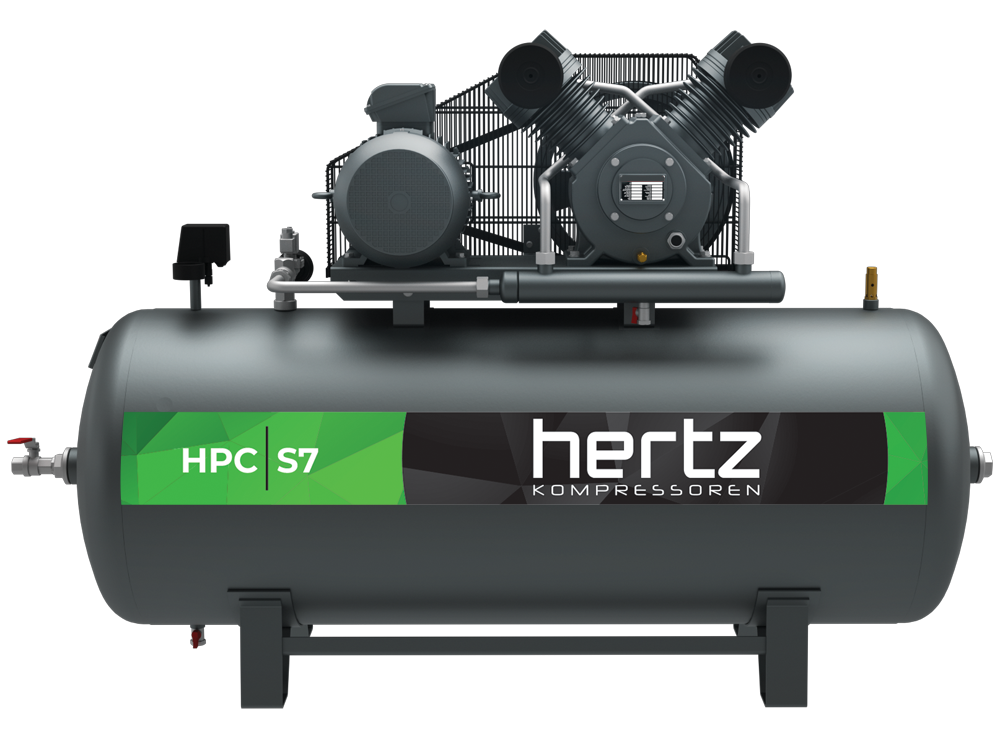

    HPC-S7 8 115 1013 35,8 5,5/7,5 3/4” 1934 642 1308 308 500
    HPC-S10 8 115 1657 58,5 7,5/10 3/4” 1926 668 1413 390 500
    Double Stage
    HPC-T2 12 175 205 7,2 1,5/2,0 1/2” 1532 450 983 145 200
    HPC-T5 15 215 507 17,9 4/5,5 3/4” 1832 474 1097 230 250
    HPC-T7 12 175 856 30,2 7,5/10 3/4” 1920 658 1298 374 500
    HPC-T10 15 215 828 29,2 7,5/10 3/4” 1925 669 1406 439 500

    - Unit performances measured in reference conditions which are 1 bar absolute air pressure, %0 relative humidity, 20°C inlet air temperature, 71°C thermostatic valve set temperature and use of Smartoil.
    - Hertz Kompressoren reserves its rights to make changes in its products and specifications without prior notice.
