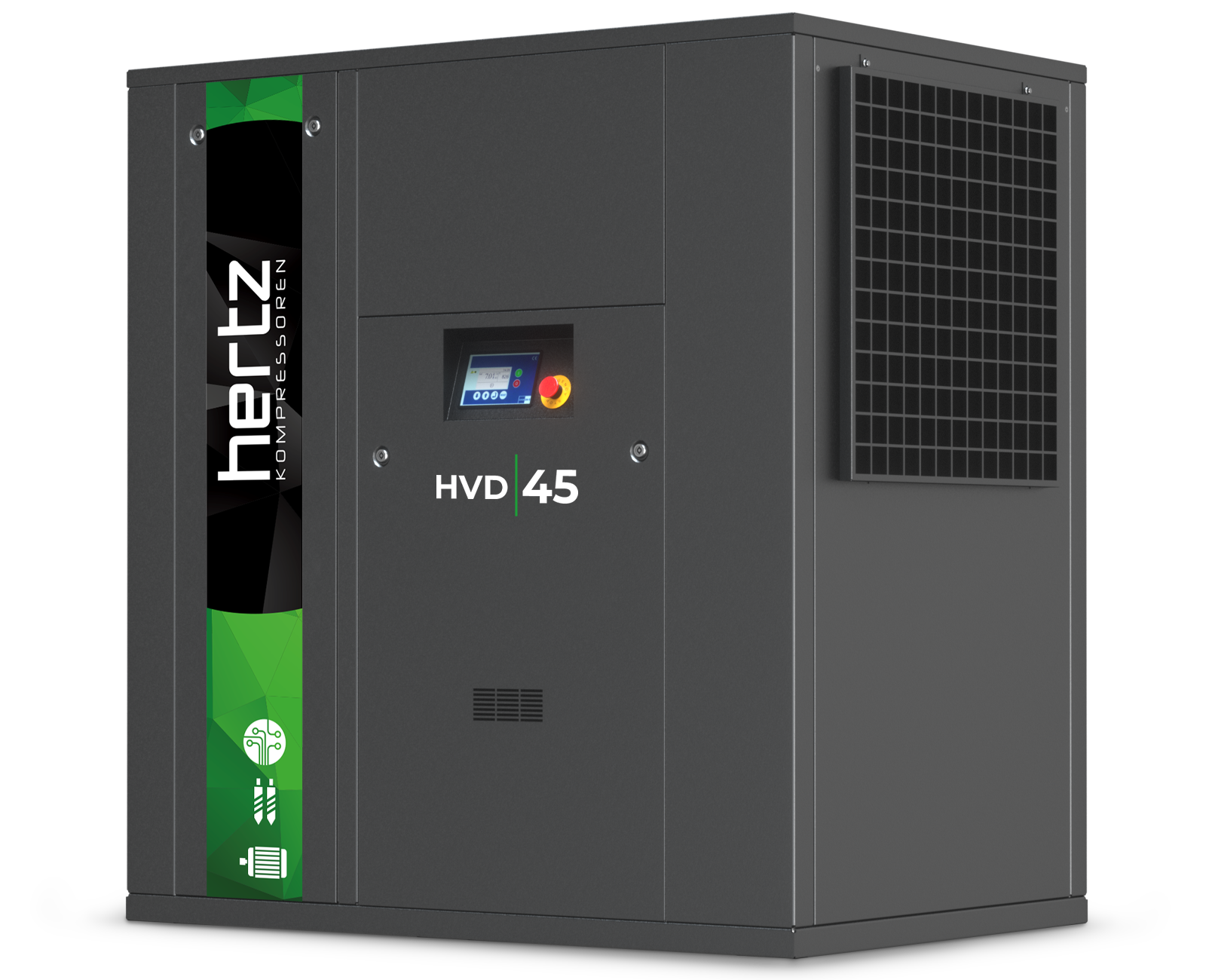

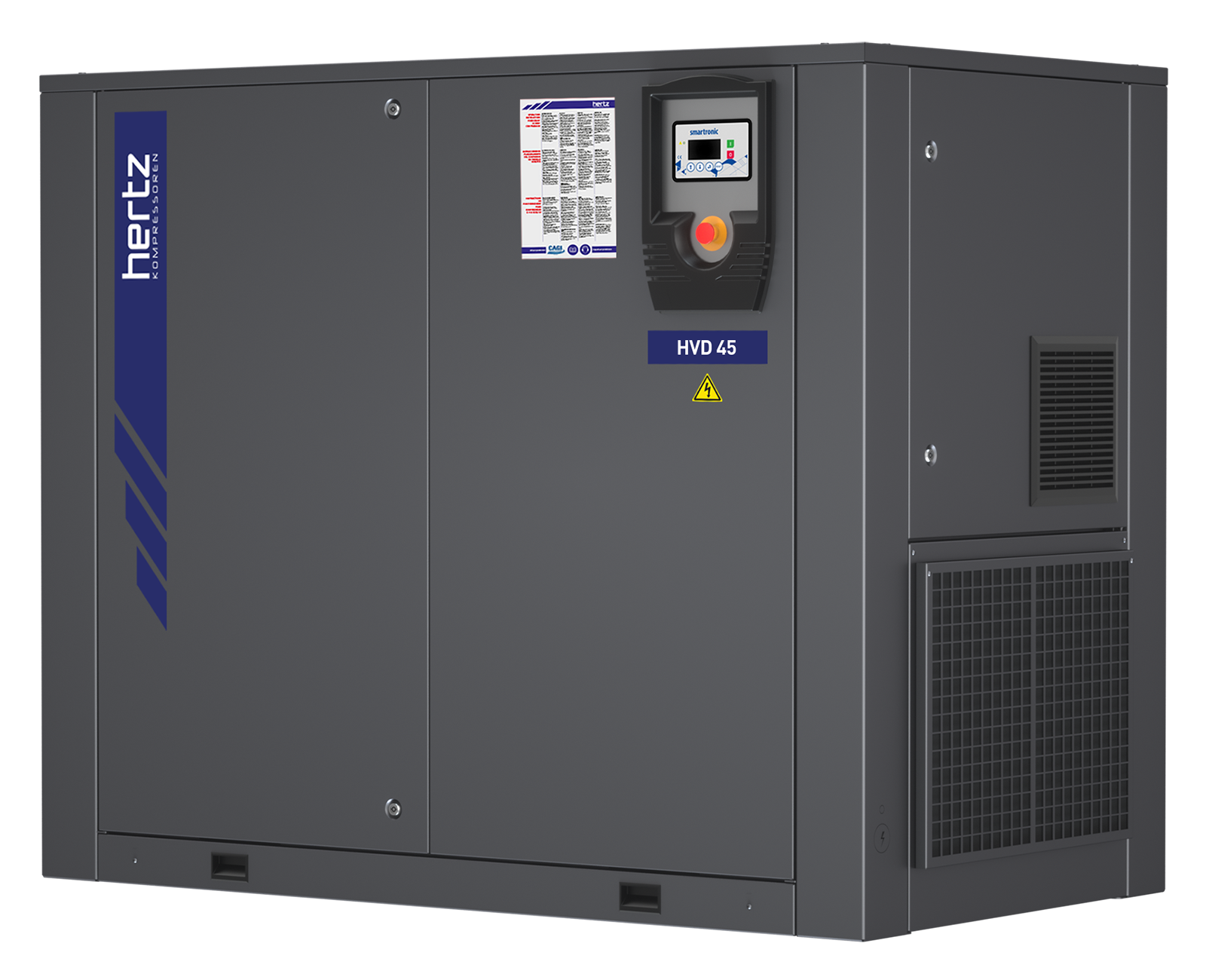

    HVD SERIES



     7,5-100 HP   100-125-150-175 psi   18-490 cfm

    Oil Injected, Direct Coupled, Variable Speed

    Rotary Screw Air Compressor

     Advantages

    • Easily accessible parts for reduced maintenance costs.

    • Protective covers can be removed and fitted quickly for easy servicing.

    • Controllers allow ease of access and use.

    • It provides energy saving with variable speed feature.

    hvd-series

     General Features

    • High-quality, easy-to-replace components with a long service life

    • Next gen screw block and motor

    • Electronic control

    • Direct coupled

    • Soft starter (optional)

    • Water cooling (optional)

    • Tank mounted (optional)

    • Integrated dryer and heat recovery (optional)

    • Food grade oil suitable for food production

     Screw Block

    • Specially selected, durable screw blocks for different capacity needs

    • New rotor profiles for reduced loss air production and lower torque requirements

    • Next gen bearing design for improved load resistance capabilities


     Oil Filter

    • Highly efficient immersion-type separator with long service life

    • Easy maintenance

    • Compact design



    hvd-series

     Controller

    • Without the need for an external main controller, ability to co-aged work synchronized with Master/Slave for up to two compressors

    • Internal ModBus communication

    • User-f riendly on-screen interface

    • Alarm log records last 20 alarms

    • Weekly scheduler for starting/stopping the machine at 3 different time intervals can be individually set for each day of the week (55 kW and above)

    • Maintenance warnings and history (55 kW and above)

     7,5-100 HP   100-125-150-175 psi   18-490 cfm

    TECHNICAL  SPECIFICATIONS

    Model Pressure Capacity* Motor Connection Dimensions (in.) Weight
    psi bar Minimum Maximum HP/kW Length Width Height Ibs
    cfm m³/min cfm m³/min
    HVD 5 100 6,9 21 0,6 31 0,9 7,5/5,5 1/2” NPT 41 26 38 569
    125 8,6 19 0,5 28 0,8
    150 10,3 19 0,5 24 0,7
    HVD  7 100 6,9 18 0,5 46 1,3 10/7,5 1/2” NPT 41 26 38 686
    125 8,6 20 0,6 42 1,2
    150 10,3 18 0,5 35 1
    175 12,1 18 0,5 30 0,8
    HVD 11 100 6,9 19 0,5 66 1,9 15/11 3/4” NPT 47 30 46 683
    125 8,6 19 0,5 63 1,8
    150 10,3 19 0,5 56 1,6
    175 12,1 23 0,6 49 1,4
    HVD 15 100 6,9 28 0,8 92 2,6 20/15 3/4” NPT 47 30 46 772
    125 8,6 28 0,8 83 2,3
    150 10,3 27 0,7 77 2,2
    175 12,1 35 1 65 1,8
    HVD 18 100 6,9 38 1,1 113 3,2 25/18,5 1” NPT 64 33 55 1385
    125 8,6 38 1,1 104 2,9
    150 10,3 37 1 96 2,7
    175 12,1 36 1 83 2,3
    HVD 22 100 6,9 38 1,1 137 3,9 30/22 1” NPT 64 33 55 1429
    125 8,6 38 1,1 131 3,7
    150 10,3 37 1,1 122 3,5
    175 12,1 38 1,1 112 3,2
    HVD 30 100 6,9 37 1 193 5,4 40/30 1 1/4” NPT 80 44 64 2610
    125 8,6 36 1 172 4,9
    150 10,3 36 1 162 4,6
    175 12,1 36 1 147 4,2
    HVD 37 100 6,9 60 1,7 236 6,7 50/37 1 1/4” NPT 80 44 64 2831
    125 8,6 60 1,7 217 6,1
    150 10,3 60 1,7 203 5,7
    175 12,1 61 1,7 185 5,2
    HVD 45 100 6,9 99 2,8 311 8,8 60/45 1 1/4” NPT 80 44 64 2976
    125 8,6 99 2,8 283 8
    150 10,3 111 3,1 254 7,2
    175 12,1 152 4,3 224 6,3
    HVD 55 100 6,9 94 2,6 351 9,9 75/55 2” NPT 91 54 82 4840
    125 8,6 97 2,7 334 9,4
    150 10,3 97 2,7 309 8,7
    175 12,1 153 4,3 266 7,5
    HVD 75 100 6,9 237 6,7 490 13,9 100/75 2” NPT 91 54 82 5390
    125 8,6 233 6,6 438 12,4
    150 10,3 226 6,4 409 11,6
    175 12,1 226 6,4 366 10,3

    - Unit performances measured in reference conditions which are 1 bar /14.5 psig absolute air pressure, %0 relative humidity, 20°C /68 °F inlet air temperature, 71°C/160 °F thermostatic valve set temperature and use of Smartoil.
    - HERTZ KOMPRESSOREN reserves its rights to make changes in its products and specifications without prior notice.
    * Refers to free air delivery measured according to ISO 1217:2009, Annex E standard.
