Advantages

• Food and Beverage

• Pharmaceutical

• Automotive

• Electronic

• All industries requiring a dew point of -40°C or optional -70°C.



What is Desiccant Compressed Air Dryer?

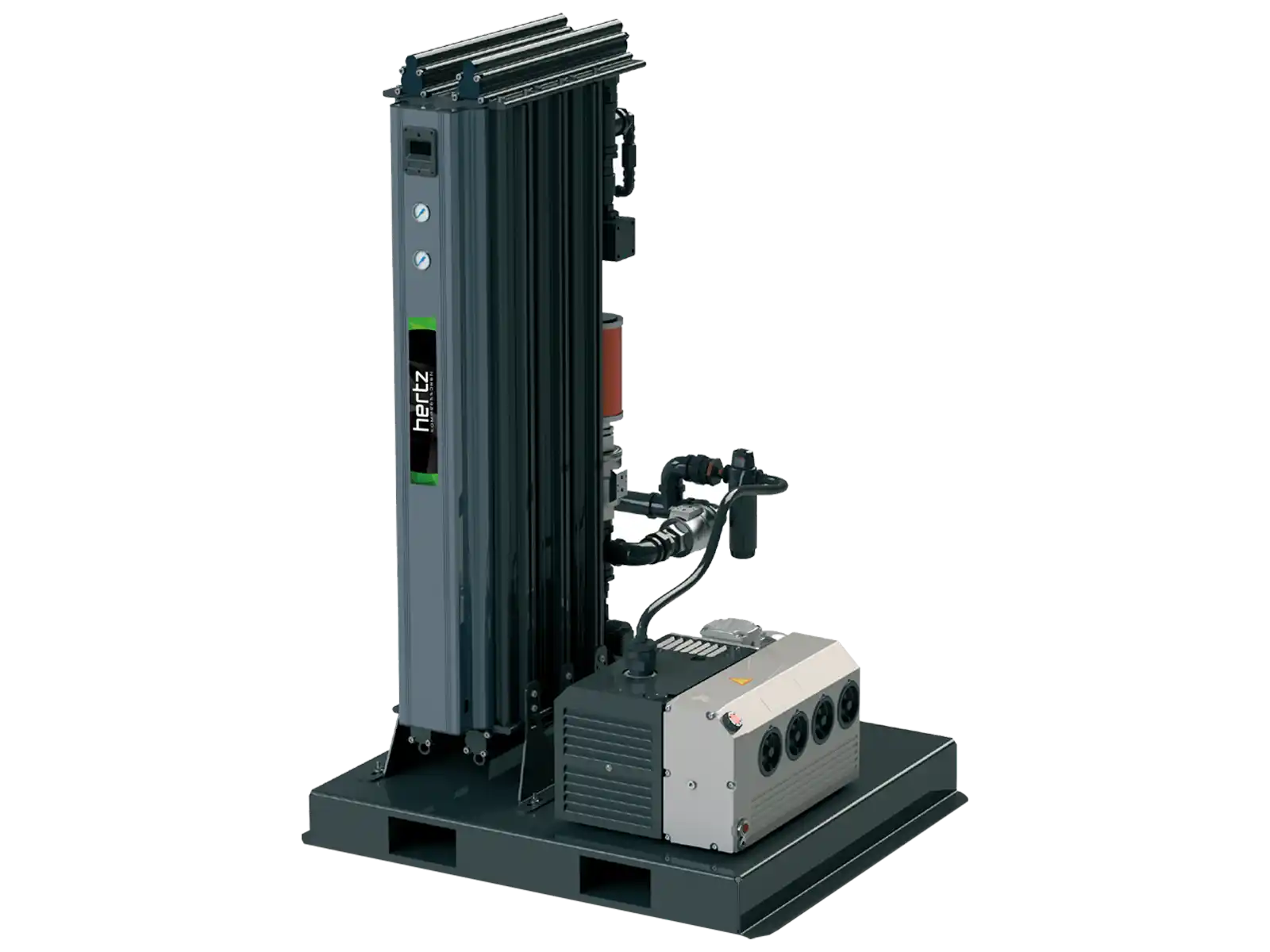

The HMD-VP Series modular, vacuum purge heatless desiccant air dryers remove water vapour from the compressed air, stop corrosion, and prevent the growth of micro-organisms when supplying the clean air crucial for production. HMD-VP Series air dryers efficiently and reliably supply the system with high-quality dry air with a dew point of -40 °C or optionally a dew point of -70 °C. This extends the machinery’s life span, keeps maintenance costs to a minimum, and results in safe and healthy production. The new vacuum purge technology minimises air loss during regeneration and optimises production levels.

TECHNICAL  SPECIFICATIONS

Model Capacity Vacuum Pump Filter Set Connection Size Voltage Max. Working Pressure
m³/h kW V bar
HMD-VP-60 1,66 1,1 Included 1 1/2" 400/3/50 16
HMD-VP-75 2,16 1,1 Included 1 1/2" 400/3/50 16
HMD-VP-100 2,83 1,3 Included 1 1/2" 400/3/50 16
HMD-VP-120 3,33 2,2 Included 1 1/2" 400/3/50 16
HMD-VP-180 5 2,2 Included 1 1/2" 400/3/50 16
HMD-VP-240 6,66 3 Included 1 1/2" 400/3/50 16
HMD-VP-340 9,58 4 Included 1 1/2" 400/3/50 16
HMD-VP-400 11,33 4 Included 2" 400/3/50 16
HMD-VP-500 14,16 5,5 Included 2" 400/3/50 16
HMD-VP-590 16,66 5,5 Included 2" 400/3/50 16
HMD-VP-740 20,83 7,5 Included 3" 400/3/50 16
