    HGS-HSC SERIES

    IMPETUS SERIES
    HGS-HSC SERIES
    FRECON PLUS SERIES
    HSC SERIES
    HSC-D SERIES
    HSB SERIES
    HSC 16BAR SERIES
    HGS-HSC SERIES [NEW]
    FRECON PLUS ᵖᵐ SERIES [NEW]

     2,2-37 kW   7,5-10-13 bar  0,38-6,4 m³/min


    Oil Injected, Belt Driven, Fixed Speed

    Rotary Screw Air Compressors

    HGS-HSC presents constant high performance in small and medium business enterprises.

     Advantages

    • Economic, service-friendly design minimizes downtime and reduces maintenance costs.

    • Models with tanks and integrated dryers are compact and take up little space leaving room for other machinery.


     General Features

    • High quality screw block and motor

    • Electronic control

    • Optional high-pressure air tank made from high pressure vessel steel

    • Easy installation and quick implementation thanks to its compact design

    hgs-hsc-series

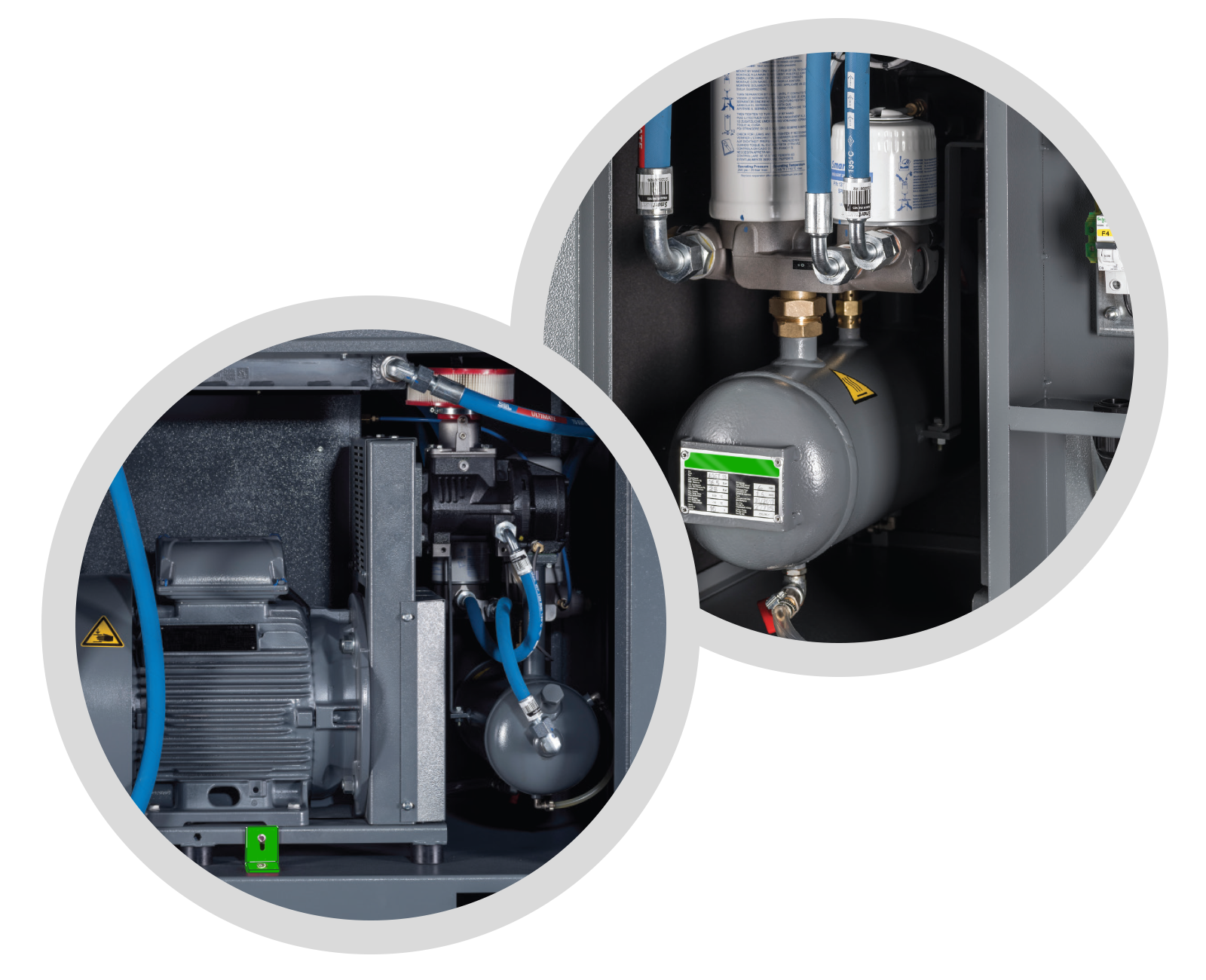

     Main Motor and Drive System

    • IE3 efficiency-class electric motor

    • Star/delta motor starter

    • Soft start option

    • Belt-pulley drive system

    • Easy-to-use belt tensioner and pulley bushing for easy servicing


     Screw Block

    • Durable screw block provides high-capacity of air and is specially selected for each model’s capacity requirement

    • New rotor profiles for reduced loss air production and lower torque requirements

    • Next gen bearing design for improved load bearing capabilities

    hgs-hsc-series

     Controller

    • Without the need for an external main controller, ability to co-aged work synchronized with Master/Slave for up to two compressors

    • Internal ModBus communication

    • User-friendly on-screen interface

    • Alarm log records last 20 alarms

    • Weekly scheduler for starting/stopping the machine at 3 different time intervals can be individually set for each day of the week (30 kW and above)

    • Maintenance warnings and log records (30 kW and above)

     2,2-37 kW   7,5-10-13 bar  0,38-6,4 m³/min

    TECHNICAL  SPECIFICATIONS

    Model Pressure Capacity* Motor Power Connection Size Dimensions Weight
    [Length x Width x Height] (mm) (kg)
    bar psi m³/min cfm kW/HP Base Mounted Tank Mounted Compact Base Mounted Tank Mounted Compact
    HGS 2 7,5 110 0,38 13,4 2.2/3,0 G 1/2” 900 x 550 x 860 1425 x 550 x 1335 1834 x 550 x 1335 167 239 288
    HGS 3 7,5 110 0,41 14,5 3,0/4,0 G 1/2” 900 x 550 x 860 1425 x 550 x 1335 1834 x 550 x 1335 159 241 290
    10 145 0,36 12,7
    HGS 4 7,5 110 0,56 19,8 4,0/5,5 G 1/2” 900 x 550 x 860 1425 x 550 x 1335 1834 x 550 x 1335 175 257 306
    10 145 0,46 16,3
    13 190 0,35 12,3
    HGS 5,5 7,5 110 0,8 28,3 5,5/7,5 G 1/2” 1050 x 550 x 835 1425 x 550 x 1310 1425 x 550 x 1310 197 279 328
    10 145 0,65 23
    13 190 0,53 18,7
    HGS 7,5 7,5 110 1,15 40,6 7,5/10 G 3/4” 1050 x 550 x 835 1912 x 640 x 1500 1912 x 640 x 1612 205 357-386 408-437
    10 145 0,95 33,6
    13 190 0,77 27,2

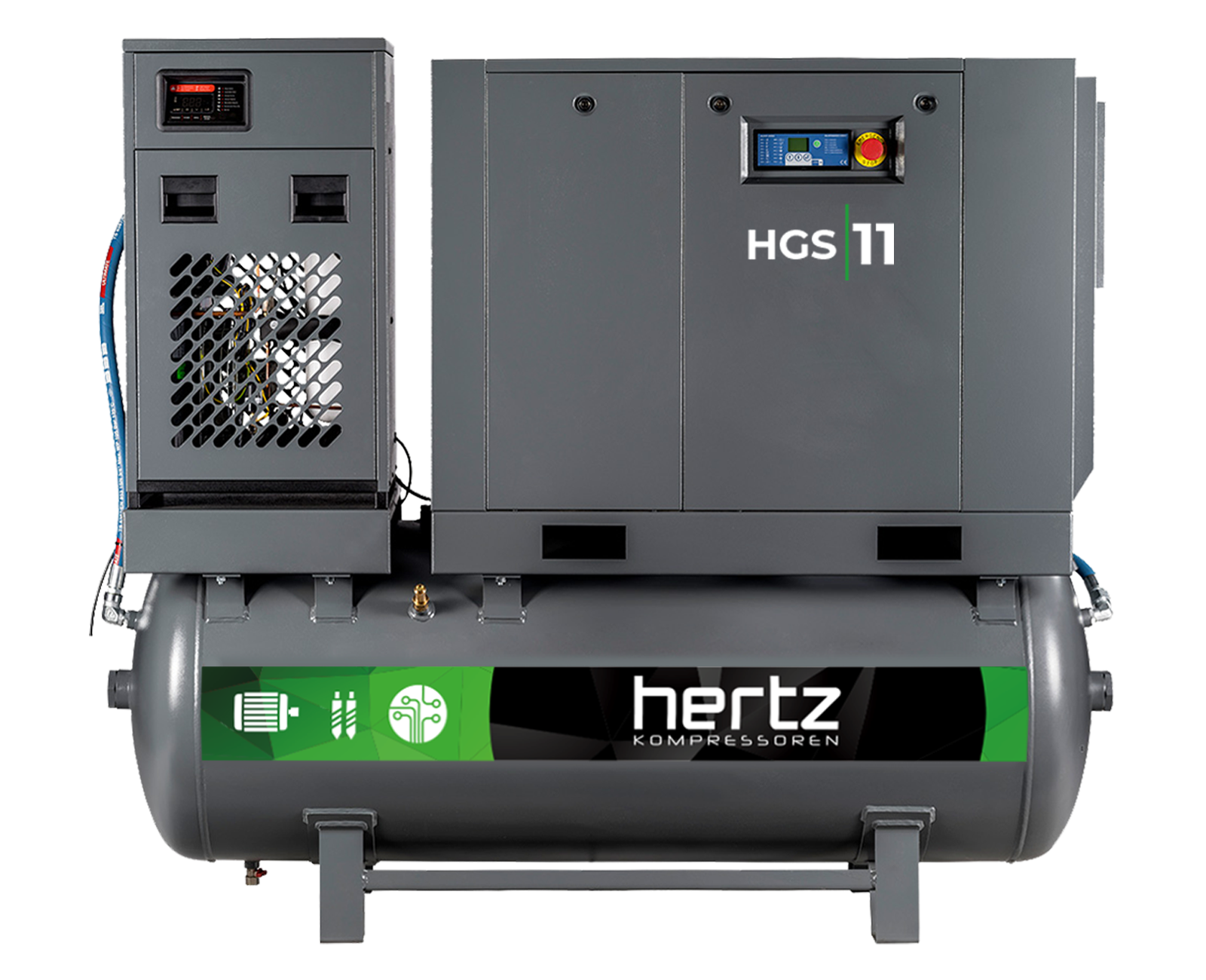

    HGS 11 7,5 110 1,7 60 11/15 G 3/4” 1217 x 650 x 915 1912 x 655 x 1575 1915 x 655 x 1605 274 426-455 477-506
    10 145 1,4 49,5
    13 190 1,16 41
    HGS 15 7,5 110 2,25 79,5 15/20 G 3/4” 1217 x 670 x 915 1915 x 655 x 1575 1915 x 655 x 1605 305 457-486 510-539
    10 145 1,96 69,2
    13 190 1,61 56,9
    HSC 15 7,5 110 2,7 95,4 15/20 G 1” 1276 x 850 x 1435 - - 420 - -
    10 145 2,3 81,2
    13 190 1,9 67,1
    HSC 18,5 7,5 110 3,3 116,6 18,5/25 G 1” 1276 x 850 x 1435 - - 465 - -
    10 145 2,8 98,9
    13 190 2,4 84,8
    HSC 22 7,5 110 3,8 134,2 22/30 G 1” 1276 x 850 x 1435 - - 510 - -
    10 145 3,5 123,6
    13 190 3 106
    HSC 30 7,5 110 4,6 162,5 30/40 G 1 1/4” 1610 x 1030 x 1755 - - 698 - -
    10 145 4 141,3
    13 190 3,6 127,1
    HSC 30 B 7,5 110 5,2 183,7 30/40 G 1 1/4” 1610 x 1030 x 1755 - - 710 - -
    10 145 4,3 151,9
    13 190 3,7 130,7

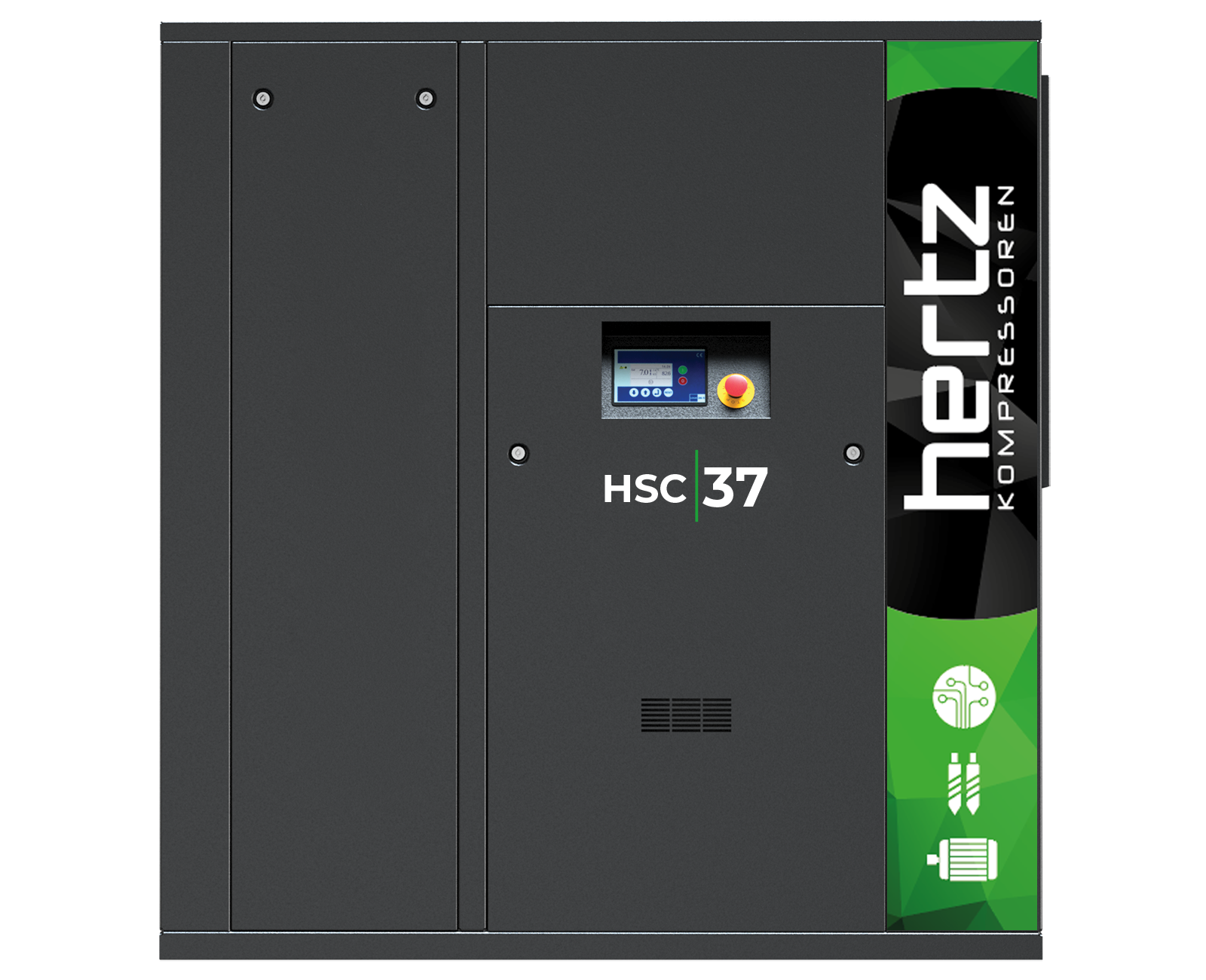

    HSC 37 7,5 110 6,4 226 37/50 G 1 1/4” 1610 x 1030 x 1755 - - 740 - -
    10 145 5,4 190,7
    13 190 4,3 151,9

    - Unit performances measured in reference conditions which are 1 bar absolute air Pressure, %0 relative humidity, 20°C inlet air temperature, 71°C thermostatic valve set temperature and use of Smartoil.
    - Hertz Kompressoren reserves its rights to make changes in its products and specifications without prior notice.
    * Refers to free air delivery measured according to ISO 1217:2009, Annex E standard.
