FRECON PLUS ᵖᵐ SERIES [NEW]

Get A Quote Contact Download Share

5-37 kW 7,5-8,5-10-13 bar 0,25-6,64 m³/min

Oil Injected, Direct Coupled, Variable Speed

Rotary Screw Air Compressors

Thanks to its high quality equipment and advanced engineering solutions, it provides efficient and flexible use according to your industrial production needs.

Advantages

• One of the products in its class that takes up the least footprint.

• It saves up to 55% energy.*

• It operates at constant output pressure value.

• It has wide operating pressure range (5-13 bar).**

• It provides effective and energy efficient compressed air production even in case of highly variable compressed air requirements.

• Long component life cycle thanks to soft start.

• It has the feature of protecting against the adverse effects of peak currents.

* When compared with compressors without an inverter for applications with variable requirements

** If requested, it is produced specially according to the need.

General Features

• IE5 high efficiency-class IPM electric motor

• Operating with low noise level

• Soft start with variable speed power transmission

• Dryer and tank mounted option (up to 22 kW)

• Integrated dryer and heat recoveryrecovery option (18 kW and above)

Screw Block

• Zero transmission losses by compact direct power transmission

• High performance even at low speeds

• New rotor profiles for reduced loss air production

• Next gen bearing design for improved load bearing capabilities

• Thanks to low rotor speeds, a long service life

Electric Motor

• IE5 Ultra Premium energy efficient Internal Permanent Magnet (IPM) electric motor

• Compact design

• Low noise level

• F-class insulation

• Optimum oil cooling at all speeds for high efficiency

• Grease-free lubricated motor bearings

Heat Recovery Options For Even More Savings 🌱

In compressor, a high amount of heat is released during the compression of the air. A large amount of heat is recovered with a suitable oil/water exchanger placed at the oil tank outlet ofthe compressor. The hot water obtained with the heat recovery can be used in many areas in your facilities. By directing the hot air coming out of the compressor, a room can be heated when heating is required, or hot air can be given outside with thermostatic control, in accordance with seasonal changes. In this way, savings from the heating system and natural gas are provided.80% of the compressor’s total energy consumption can be recovered.

VSD Technology

Intake System

• Air circulation inside the cabin with negative pressurized cabin andsealed cover structure.

• Fresh air intake thanks to hot air evacuated at a point away from the suction.

• Low noise level thanks to intake blinds.

(Frecon Plus ᵖᵐ11-37)

Air Filter

• 99.9% efficiency in particle separation down to 3 microns

• Low pressure loss (starting pressure fall <3mbar)

• Easy maintenance

• Long service life

Air & Oil Separator

• Effective separator elements keep the amount of oil in the outlet air low (1-3 mg/m³) for highquality compressed air

• Spin-on or immersion type separator design depending on the product series

• Easy-to-detach spin-on type separator

(Frecon Plus ᵖᵐ 5-22)

• High-efficiency immersion type separator with long service life

(Frecon Plus ᵖᵐ 30-37)

Cooling System

• Temperature controlled axial fan (Frecon Plus ᵖᵐ 5-15)

• Optimum working temperature thanks to inverter controlled fans, provides additional energy efficiency (Frecon Plus ᵖᵐ 18-37)

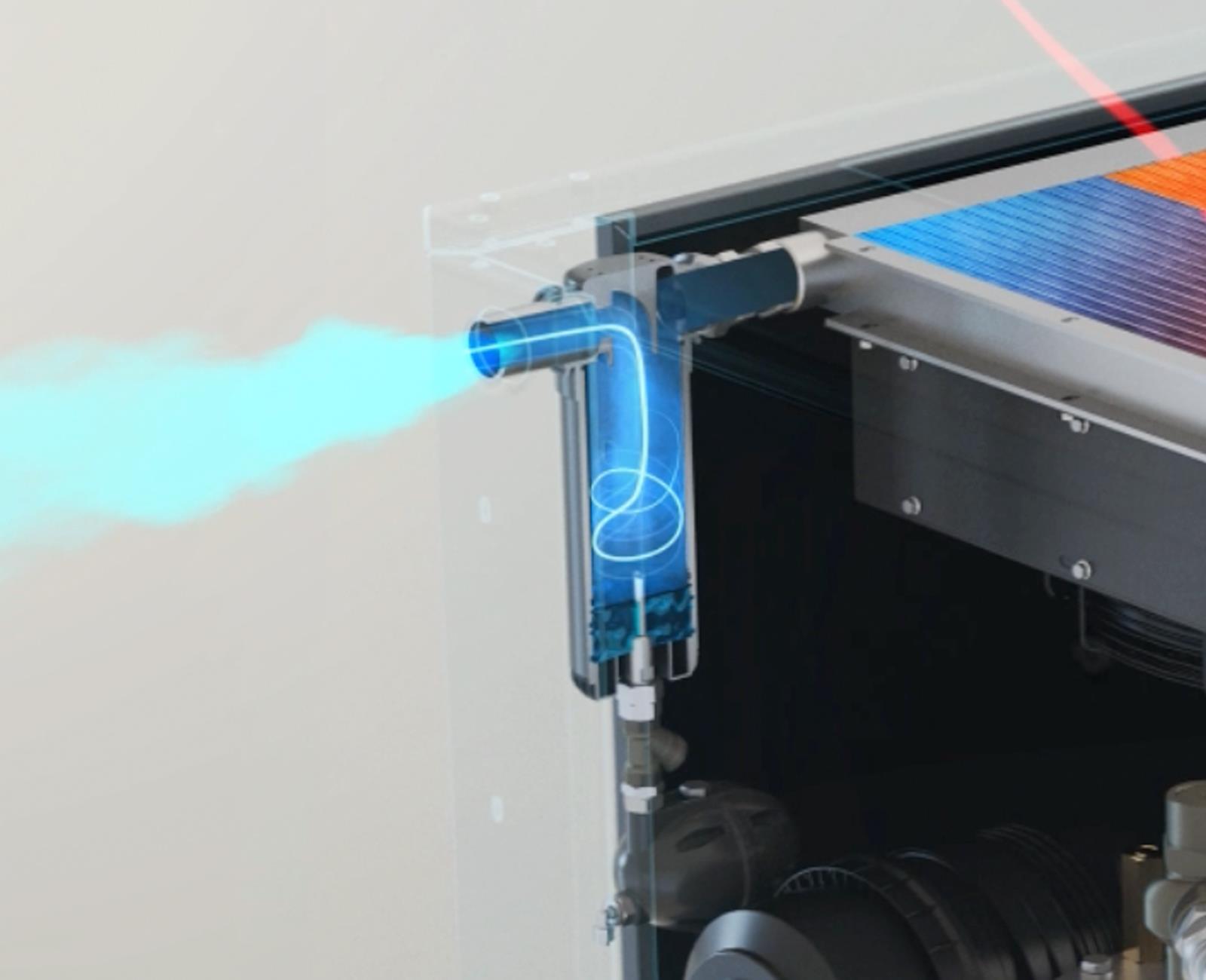

Water Separator

• Separation performance is >%99 even in very hot and humid conditions

• Compact, integrated and unique design

(Frecon Plus ᵖᵐ 18-37)

• High energy efficiency with minimal pressure loss

(Frecon Plus ᵖᵐ 18-37)

Controller

• User-friendly display interface with 7” LED display

• Group operation of up to 4 compressors

• Possibility to choose Master/Slave compressor

• Ability to connect to customer DCS system via ModbusTCP

• Compact construction with integrated driver and controller

• Weekly scheduler for starting/stopping the machine at 2 different time intervals can be individually set for each day of the week

• Dual PID feature can run simultaneous PID for temperature and pressure

• Pressure PID ensures energy-efficient operation by maintaining the pressure at the desired level

• Temperature PID controls the fan speed to maintain the screw block’s most efficient operating temperature

• All inverter and compressor control data are managed from a single point

• Ability to determine co-aging times of the system with selectable parameters

• Built-in phase sensor

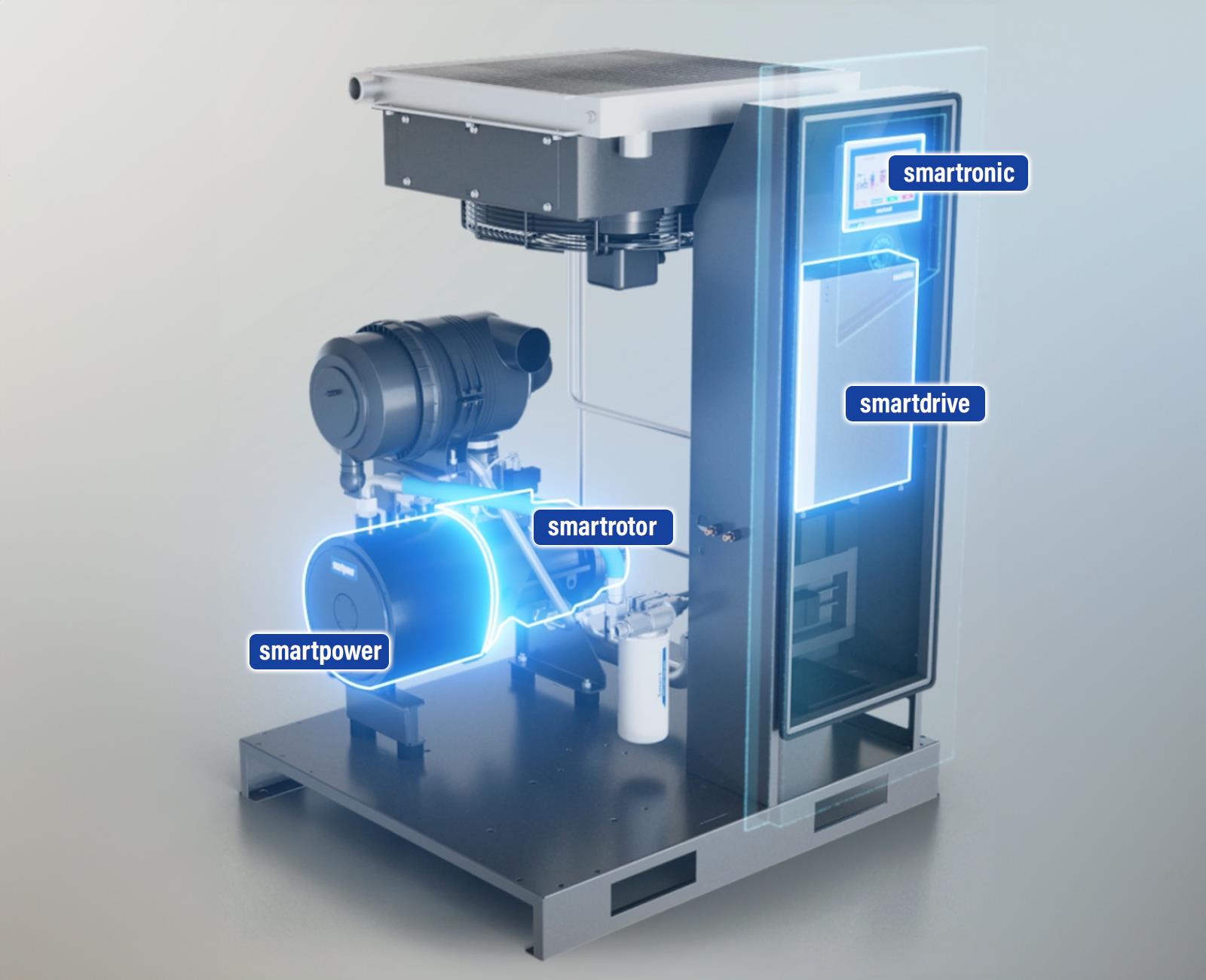

100% Reliability with Hertz Kompressoren

smartrotor Long service time with low rotor speeds thanks to SmartRotor special design profiles

smartpower High performance with compact and low noise level thanks to IPM technology of SmartPower motor

smartronic Management of inverter and all compressor data from a single point with Smartronic controller

smartdrive Effective operation with constant pressure control providing variable speed with SmartDrive inverter

After Sales Service

5-37 kW 7,5-8,5-10-13 bar 0,25-6,64 m³/min

TECHNICAL SPECIFICATIONS

Model	Pressure		Capacity*				Motor Power	Connection Size	Dimensions		Weight		Air Receiver	Noise
	Pressure		Capacity*				Motor Power		[Length x Width x Height] (mm)		kg			Noise
	bar	psi	Minimum m³/min - cfm		Maximum m³/min - cfm		kW/HP		Base Mounted	Compact	Base Mounted	Compact		dB(A)
FRECON PLUS ᵖᵐ 5	7,5	110	0,27	9,5	0,91	32,1	5,5/7,5	G 1/2”	755x630x1100	1870x680x1600	153	316	250L	63
	8,5	125	0,28	9,9	0,83	29,3
	10	145	0,25	8,8	0,71	25,1
	13	190	0,25	8,8	0,53	18,7
FRECON PLUS ᵖᵐ 7	7,5	110	0,32	11,3	1,24	43,9	7,5/10	G 1/2”	755x630x1100	1870x680x1600	153	335	250L	64
	8,5	125	0,31	10,9	1,13	39,8
	10	145	0,27	9,5	1	35,3
	13	190	0,42	14,8	0,74	26,2
FRECON PLUS ᵖᵐ 11	7,5	110	0,58	20,5	2,01	70,9	11/15	G 3/4”	835x730x1200	1940X730X1865	210	469	500L	69
	8,5	125	0,56	19,8	1,89	66,8
	10	145	0,54	19,1	1,69	59,6
	13	190	0,51	18	1,13	39,8
FRECON PLUS ᵖᵐ 15	7,5	110	0,75	26,5	2,5	88,3	15/20	G 3/4”	835x730x1200	1940X730X1865	236	498	500L	69
	8,5	125	0,73	25,8	2,3	81,3
	10	145	0,6	21,2	1,94	68,4
	13	190	0,59	20,8	1,36	48
FRECON PLUS ᵖᵐ 18	7,5	110	0,81	28,6	3,4	120	18,5/25	G 1”	870x905x1400	2150x1225x1950	350	766	2X270L	64
	8,5	125	0,77	27,2	3,2	113
	10	145	0,72	25,4	2,83	99,8
	13	190	0,66	23,3	2,39	84,5
FRECON PLUS ᵖᵐ 22	7,5	110	1,08	38,1	3,9	138	22/30	G 1”	870x905x1400	2150x1225x1950	338	759	2X270L	68
	8,5	125	0,97	34,3	3,66	129
	10	145	0,99	35	3,26	115
	13	190	0,92	32,5	2,65	93,4
FRECON PLUS ᵖᵐ 30	7,5	110	1,36	48	5,61	198	30/40	G 1 1/2”	1030x935x1400	-	468	-	-	70
	8,5	125	1,32	46,6	5,2	184
	10	145	1,32	46,6	4,73	167
	13	190	1,2	42,4	3,87	137
FRECON PLUS ᵖᵐ 37	7,5	110	1,84	65	6,44	235	37/50	G 1 1/2”	1030x935x1400	-	475	-	-	73
	8,5	125	1,71	60,4	6,27	221
	10	145	1,51	53,3	5,55	196
	13	190	1,31	46,3	4,54	160

- Unit performances measured in reference conditions which are 1 bar absolute air Pressure, %0 relative humidity, 20°C inlet air temperature, 71°C thermostatic valve set temperature and use of Smartoil.
- Hertz Kompressoren reserves its rights to make changes in its products and specifications without prior notice.
* Refers to free air delivery measured according to ISO 1217:2009, Annex E standard.
